Framework Documentation

The Tree View Object

Tree view object is basically used to view folders and files on the server and explore them. You can add items to it one by one or load them as XML document.

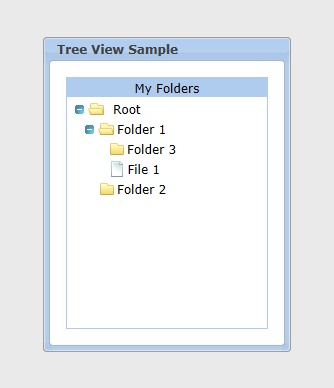

var treeView = new TTreeView('My Folders', 250, 200);
var wndTreeViewSample = createWindow('Tree View Sample');

treeView.add('root', 'Folder', 'Root');
treeView.add('fold1', 'Folder', 'Folder 1', 'root');
treeView.add('fold2', 'Folder', 'Folder 2', 'root');
treeView.add('fold3', 'Folder', 'Folder 3', 'fold1');
treeView.add('file1', 'File', 'File 1', 'fold1');

wndTreeViewSample.add(treeView);
showModal(wndTreeViewSample);

Tree view object constructor takes three parameters:

new TTreeView(title, height, width);

Load Items from XML Document

Use loadXML method to load items from XML document.

var treeView = new TTreeView('My Folders', 250, 200);
var wndTreeViewSample = createWindow('Tree View Sample');

var xmlDoc = loadXMLString('<Rows>' +
'<Row><Name>root</Name><Type>Folder</Type><Title>Root</Title></Row>' +
'<Row><Name>fold1</Name><Type>Folder</Type><Title>Folder 1</Title><ParentName>root</ParentName></Row>' +
'<Row><Name>fold2</Name><Type>Folder</Type><Title>Folder 2</Title><ParentName>root</ParentName></Row>' +
'<Row><Name>fold3</Name><Type>Folder</Type><Title>Folder 3</Title><ParentName>fold1</ParentName></Row>' +
'<Row><Name>file1</Name><Type>File</Type><Title>File 1</Title><ParentName>fold1</ParentName></Row>' +
'</Rows>');
treeView.loadXML(xmlDoc);

wndTreeViewSample.add(treeView);
showModal(wndTreeViewSample);

In the previous example, we created an XML document (xmlDoc) using build in function loadXMLString which takes an XML string as argument and passed the document to the tree view object using loadXML method.

Tree View Methods and Properties

Method/Property	Description
add	Adds a new item to the tree view object. Form: add(itemId, type, title, parentId) Example: treeView.add('fold1', 'Folder', 'Folder 1', 'root');
alignTitleLeft	Positions title text to left. Default value in center
alignTitleRight	Positions title text to right. Default value in center
clear	Clears the tree view object from all items
getSelectedItem	Gets selected item id
loadXML	Load XML data to the tree view. This method takes XML document as an argument.
setOnFileDblClick	Sets an event handler for the double click event on items of type file. Form: setOnFileDblClick(eventHandler)
setOnSelectedItemChanged	Sets an event handler for the selected item changed event on the tree view object. Form: setOnSelectedItemChanged(eventHandler)
